Carl Finnell · Case study · Selby
A Stylish Aspect for This Selby Home

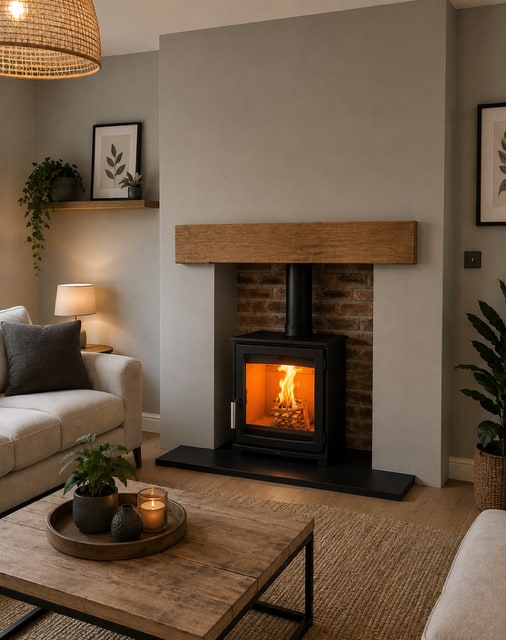

This Selby fireplace was rebuilt around a Parkray Aspect 5 woodburning stove, with an Olde Coach House rustic brick rear chamber, paintable Glasroc sides, a dark slate hearth, a natural oak fascia beam, direct external air and a new flexible chimney liner.
The project
From the old surround to a complete new fireplace
As part of this project, we removed the existing timber fireplace surround before safely capping and sealing the gas supply in preparation for the new wood-burning stove installation.
A new, larger fireplace chamber was created by opening the chimney breast to provide the correct proportions for the new woodburning appliance. A reinforced concrete lintel was installed to support the masonry above, before the rear chamber wall was lined with handmade-style rustic brick slips and the sides with a smooth non-combustible Glasroc Firecase material which can then be painted to match or contrast the room.

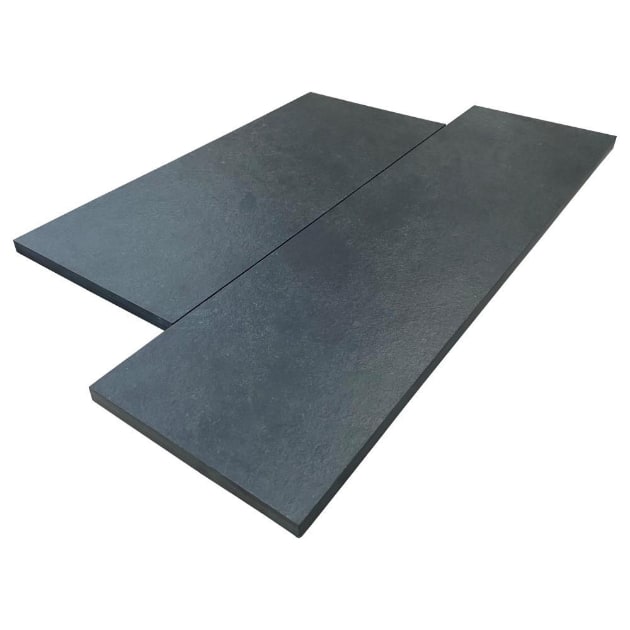

The dark slate hearth was then laid inside the chamber and measuring approximately 900 x 380mm. In front of the chimney breast the hearth measured 1200mm x 350mm x 20mm high. A perfect complement to the new engineered oak floor.

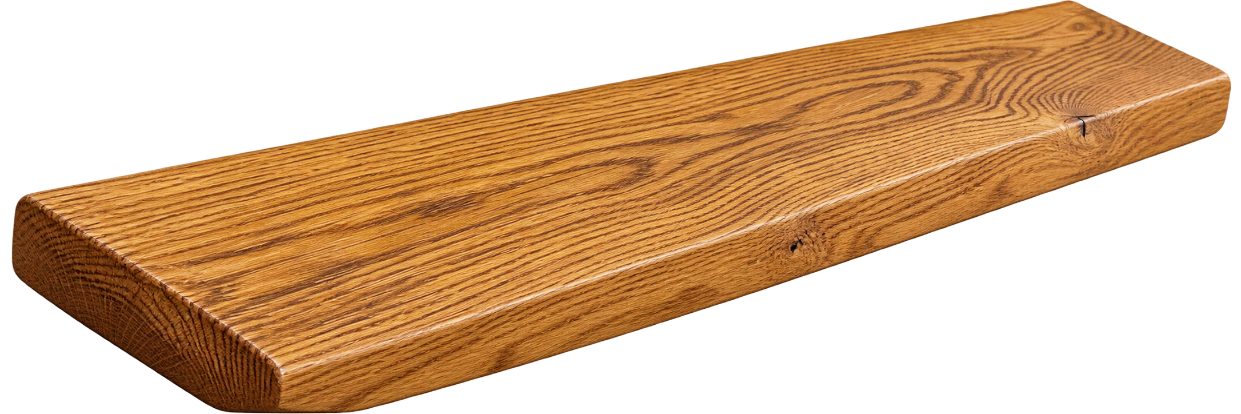

Next, we fitted the natural oak fascia beam, measuring 1200mm × 140mm × 35mm thick. The beam was supplied in a medium oak finish, carefully selected to complement the existing engineered oak flooring and create a warm, cohesive finish throughout the room.
To ensure the installation is completely safe and works efficiently, we installed a British-manufactured twin-wall stainless steel flexible flue liner, complete with an anti-downdraught cowl on the chimney pot. This cowl helps prevent birds, rain and wind from entering the flue while significantly reducing the risk of downdraught.
The installation was completed with a Parkray Aspect 5 woodburning stove and a carbon monoxide alarm. The appliance was fully commissioned, safety tested and demonstrated to the homeowners before handover.
Direct External Air Supply
Combustion air delivered from outside
To maximise efficiency, the stove was installed with a direct external air supply. This system delivers combustion air directly from outside into the appliance, reducing draughts within the room while improving combustion efficiency. The result is a cleaner burn, lower emissions, greater comfort and a reduced fuel consumption
Installation Specification
What the Selby installation included
This includes the supply and installation of the following:
- Parkray Aspect 5 - 5kw wood-burning stove.
- External air connection (for a cleaner more efficient burn).
- Vitreous flue pipe, chimney closure plate kit and all required adaptors.
- Dark slate hearth, 1200mm × 350mm × 20mm,
- Matching dark slate chamber base, 900mm × 380mm.
- Handmade-style rustic brick for the rear chamber wall
- Constructed using Olde Coach House brick slips.
- Paintable Glasroc Chamber Sides
- Classic Oak Facia Beam in Medium Oak Finish
- 316-grade Triple Lock British-made flexible stainless steel chimney liner.
- Anti-downdraught chimney cowl.
- Chimney sweeping prior to installation (to be arranged and paid directly by the customer).
- Existing gas supply to be capped and sealed by a Gas Safe registered engineer.
- All necessary building materials and consumables.
- Complete installation, commissioning and HETAS certification.
- Supply and installation of a carbon monoxide alarm.
Clients Choice of Woodburning Stove

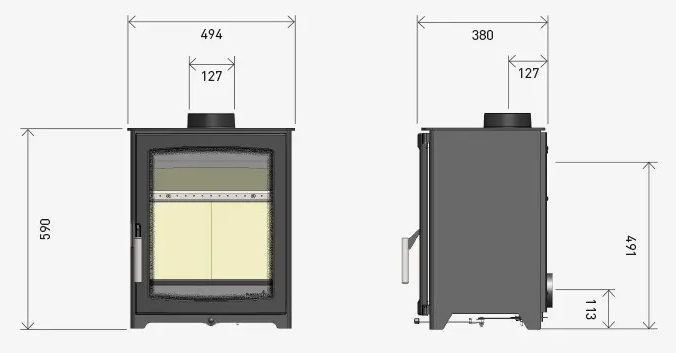

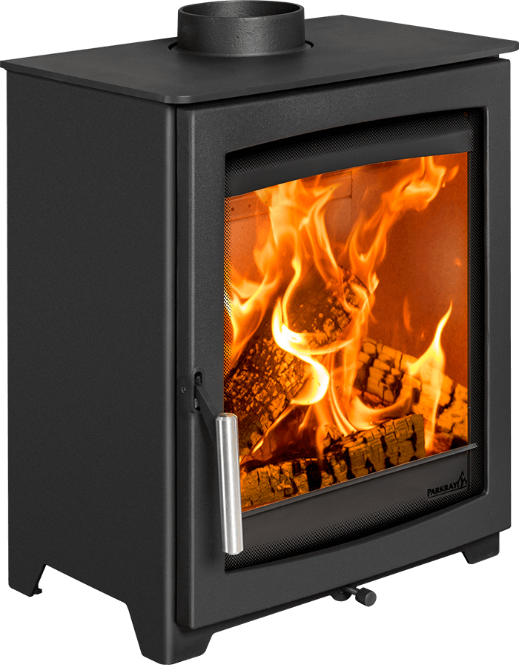

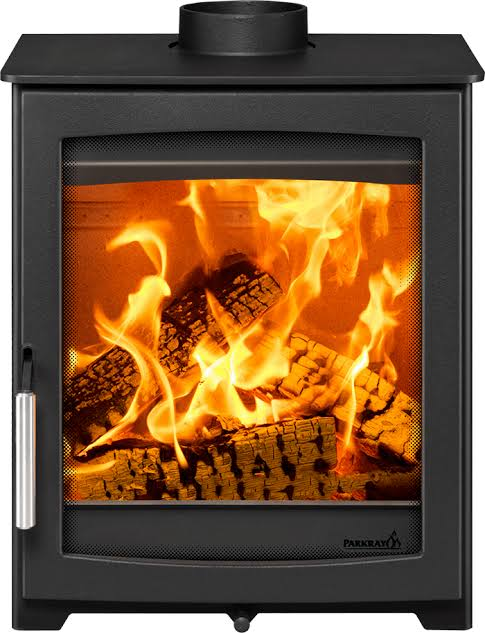

Parkray Aspect 5
The Parkray Aspect 5 woodburning stove combines contemporary styling with impressive performance, making it an excellent choice for both modern and traditional living spaces. With its large viewing window, the Aspect 5 provides a superb view of the flames, while its hot airwash system helps keep the glass clean during operation.
Offering a nominal 5kW heat output, with a controllable heat output range of approximately 4 to 7kW, the stove is designed to provide efficient and responsive heating. Its TripleBurn® technology helps promote a cleaner, more efficient combustion process, while the stove is Ecodesign 2022 approved and DEFRA approved for use in smoke-controlled areas. With clean lines, excellent controllability and a choice of handle finishes, the Parkray Aspect 5 is a stylish and practical woodburning stove that sits comfortably within a wide range of interior designs.
5Kw Woodburning Stove
80% Efficient & A Rating
With a Natural Beauty & Finish
The material link
Slate, rustic brick and medium oak in one room
The finished room brings together three clear materials around the black stove. Dark slate runs through the chamber and across the front of the chimney breast, Olde Coach House handmade-style brick slips line the rear, and smooth Glasroc Firecase sides can be painted to match or contrast the room.
Above the opening, the natural oak fascia beam measures 1200mm by 140mm by 35mm and carries a medium oak finish chosen to complement the engineered oak floor. See the wider range of oak beams, profiles and finishes available for other fireplace openings.
The technical work
A complete installation behind the visible finish
The work behind the room includes the reinforced concrete lintel, vitreous flue pipe, chimney closure plate kit, adaptors and a British-made 316-grade Triple Lock flexible stainless steel liner. An anti-downdraught cowl completes the system at the chimney pot. The flues and chimney liners guide explains how those parts connect the stove to the chimney.
The installation also includes the direct external air connection, carbon monoxide alarm, commissioning and HETAS certification. The chimney sweeping remains arranged and paid for by the customer, while the existing gas supply is capped and sealed by a Gas Safe registered engineer.
Related proof
Two Selby rooms, two different fireplace answers
This Parkray project uses a new rustic brick and Glasroc chamber with a slate hearth and oak fascia beam. The Edwardian surround and ACR Rowandale case study shows a different Selby answer, keeping and restoring the original solid oak overmantel around a sandstone chamber.
For another installation combining handmade-style brick, a timber surround and direct external air, see the Contura 210 project in Pannal. Both projects show how the appliance, chamber, hearth, timber and flue are considered together.
Questions about this kind of job
Asked and answered
Why did the Parkray Aspect 5 in Selby use direct external air?
The external air supply delivers combustion air directly from outside into the appliance. This reduces draughts in the room while improving combustion efficiency, giving a cleaner burn, lower emissions and greater comfort.
What size is the dark slate hearth in this Selby fireplace?
The front hearth measures 1200mm x 350mm x 20mm. The matching dark slate chamber base measures approximately 900mm x 380mm.
Which brick slips are behind the Parkray Aspect 5?
The rear chamber wall is lined with handmade-style rustic Olde Coach House brick slips. The chamber sides use smooth, paintable Glasroc Firecase material.
Which chimney liner was used on the Selby project?
The installation specification records a 316-grade Triple Lock British-made flexible stainless steel chimney liner, together with vitreous flue pipe, a chimney closure plate kit and the required adaptors.
What does the anti-downdraught cowl protect the flue from?
The cowl helps prevent birds, rain and wind from entering the flue while significantly reducing the risk of downdraught.
