5kWnominal output
- DEFRA ExemptSmoke control areas
- AirwashKeeps the glass clear
- 12mm HearthDecorative hearth ready
ACR · Wood Burning Stoves
ACR Neo XC Woodburning Stove

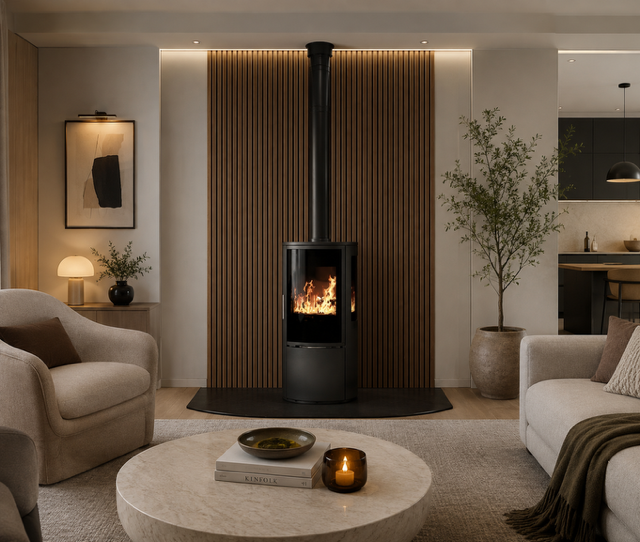

The ACR Neo XC woodburning stove combines contemporary styling with a beautifully balanced design, making it an impressive addition to both modern and traditional homes. Its three-sided glass provides an exceptional view of the flames, allowing the fire to become a focal point from almost every angle of the room.

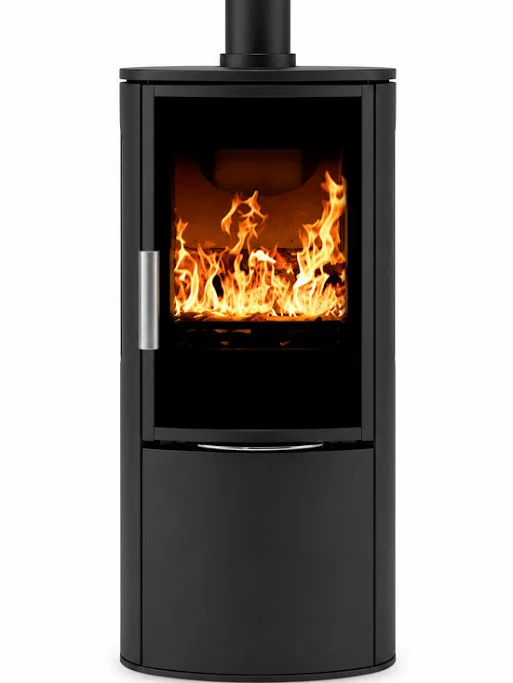

- ACR Neo 3XC with Cupboard Base

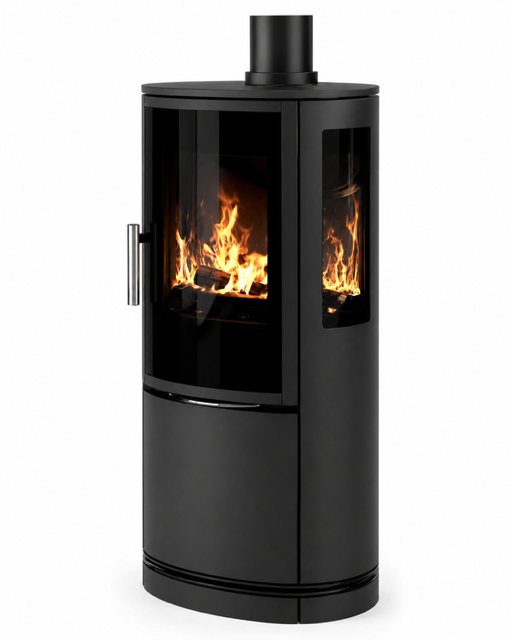

- Side Glass for Greater Viewing
- Not Ideal for Corner Installations
- 10 Years Casting Warranty
- HETAS registered
- Free home survey
- No-obligation quote
Key features
- 5kW nominal output, with a 3.5kW to 8.5kW operating range
- Three-sided glass and a built-in cupboard base
- Advanced airwash and tertiary air technology
- Top or rear 125mm flue connection
- Takes logs up to 40cm
Specification
Neo XC
- Height
- 1062mm
- Width
- 490mm
- Depth
- 390mm
- Output range
- 5kW nominal (3.5kW min / 8.5kW max)
- Efficiency
- 72.3% gross, 79.4% nett
- Hearth requirement
- 12mm non-combustible hearth (below 100 degrees, see Building Regulations)
- Weight
- 110kg
- Flue diameter
- 125mm, top or rear
- Smoke exempt
- Yes, DEFRA approved for wood burning in smoke control areas
- Log length
- 40cm
- Construction
- Cast iron and steel
- Energy rating
- A
- Warranty
- 10 years
What's included in the fit
Every Carl Finnell installation is carried out by a HETAS-registered fitter and agreed on your home survey. A typical fit includes:
- The stove, supplied and sized to your room
- Flue or chimney liner, lined chimney or twin-wall flue
- Hearth and chamber work, finished to suit the room
- Register plate and the right cowl or terminal
- Testing, commissioning and first burn
- HETAS certificate, notified to Building Control
Technical documents
Flame view and performance
A three-sided view of the fire
For a clear, uninterrupted view of the high, dancing flames within its tall firebox, the Neo XC features an advanced airwash system that helps keep the glass cleaner during operation. Tertiary air technology also introduces preheated air across the top of the firebox, helping to create a cleaner, more efficient burn while maximising the visual appeal of the flames.
The result is a stylish, highly efficient woodburning stove that combines striking three-sided views with impressive combustion technology.
