5kWnominal output
- DEFRA ExemptSmoke control areas
- AirwashKeeps the glass clear
- 12mm HearthDecorative hearth ready
ACR · Wood Burning Stoves
ACR Neo XP Woodburning Stove

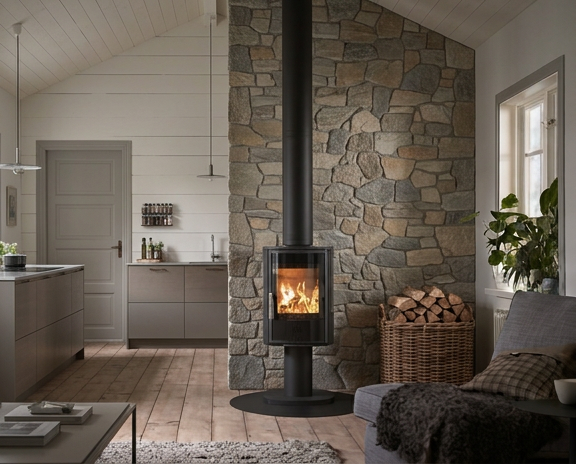

The ACR Neo XP woodburning stove combines contemporary styling with beautifully balanced proportions, making it an impressive addition to both modern and traditional homes. The stove stands proudly on a stylish pedestal base, adding a whole new dimension to its striking design. Its three-sided glass provides an exceptional view of the flames, allowing the fire to become a focal point from almost every angle of the room.
- Side Glass for a Greater Overall Fire Experience
- 10 Year Casting Warranty
- HETAS registered
- Free home survey
- No-obligation quote
Key features
- 5kW nominal output, with a 3.5kW to 8.5kW operating range
- Three-sided glass on a pedestal base
- Advanced airwash and tertiary air technology
- Top or rear 125mm flue connection
- Takes logs up to 40cm
Specification
Neo XP
- Height
- 1055mm
- Width
- 490mm
- Depth
- 390mm
- Output range
- 5kW nominal (3.5kW min / 8.5kW max)
- Efficiency
- 72.3% gross, 79.4% nett
- Hearth requirement
- 12mm non-combustible hearth (below 100 degrees, see Building Regulations)
- Weight
- 105kg
- Flue diameter
- 125mm, top or rear
- Smoke exempt
- Yes, DEFRA approved for wood burning in smoke control areas
- Log length
- 40cm
- Construction
- Cast iron and steel
- Energy rating
- A
- Warranty
- 10 years
What's included in the fit
Every Carl Finnell installation is carried out by a HETAS-registered fitter and agreed on your home survey. A typical fit includes:
- The stove, supplied and sized to your room
- Flue or chimney liner, lined chimney or twin-wall flue
- Hearth and chamber work, finished to suit the room
- Register plate and the right cowl or terminal
- Testing, commissioning and first burn
- HETAS certificate, notified to Building Control
Technical documents
Flame view and performance

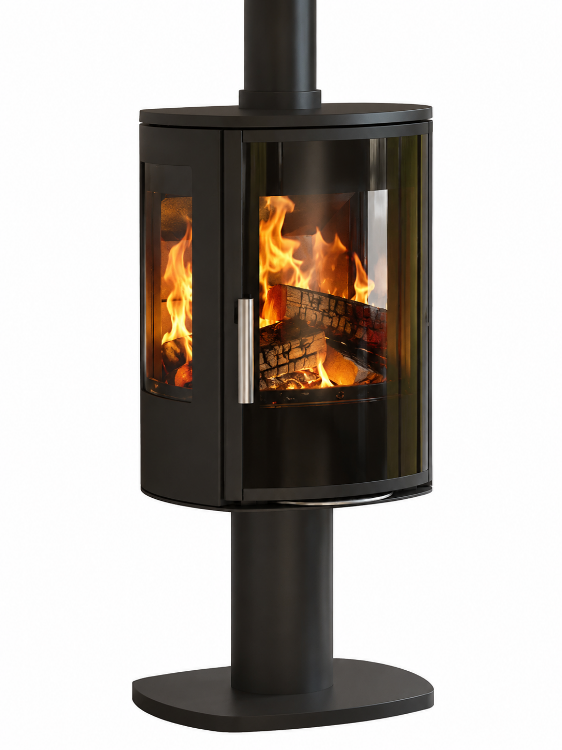

A three-sided view on a pedestal base
For a clear, uninterrupted view of the high, dancing flames within its tall firebox, the Neo XP features an advanced airwash system that helps keep the glass cleaner during operation. Tertiary air technology introduces preheated air across the top of the firebox, helping to create a cleaner and more efficient burn while maximising the visual appeal of the flames.
The result is a stylish, highly efficient woodburning stove that combines striking three-sided views, contemporary design and advanced combustion technology – creating a beautiful centrepiece for any living space.
Explore
More wood burning stoves
HETAS Registration Number 2087
HETAS registered
Installed with care, certified with confidence
Carl self-certifies every installation and notifies Building Control on your behalf, so the work is signed off properly and your certificate of compliance is issued for your records.
- HETAS-registered installer
- Certificate of compliance issued
- Meets your home insurance
